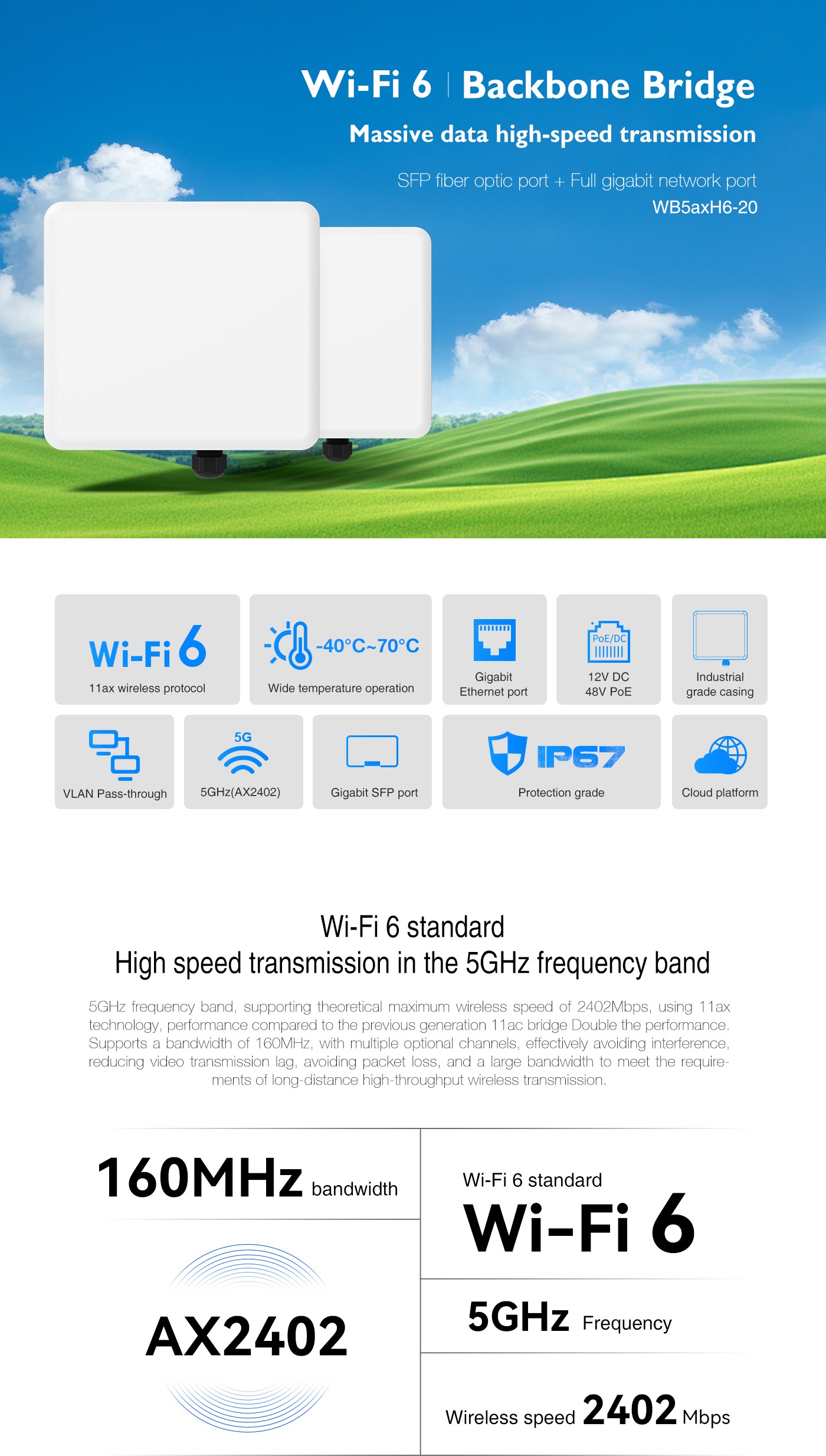

Model	WB5axH6-20
CPU	IPQ5018 +QCN6102+QCA8337
Flash	SPI NOR 8MB SPI NAND 128MB
DDR3	512MB×1
5G frequency	5.150GHz～5.850GHz
5G WIFI protocol	802.11 a / n / ac /ax
Max rate	2402Mbps

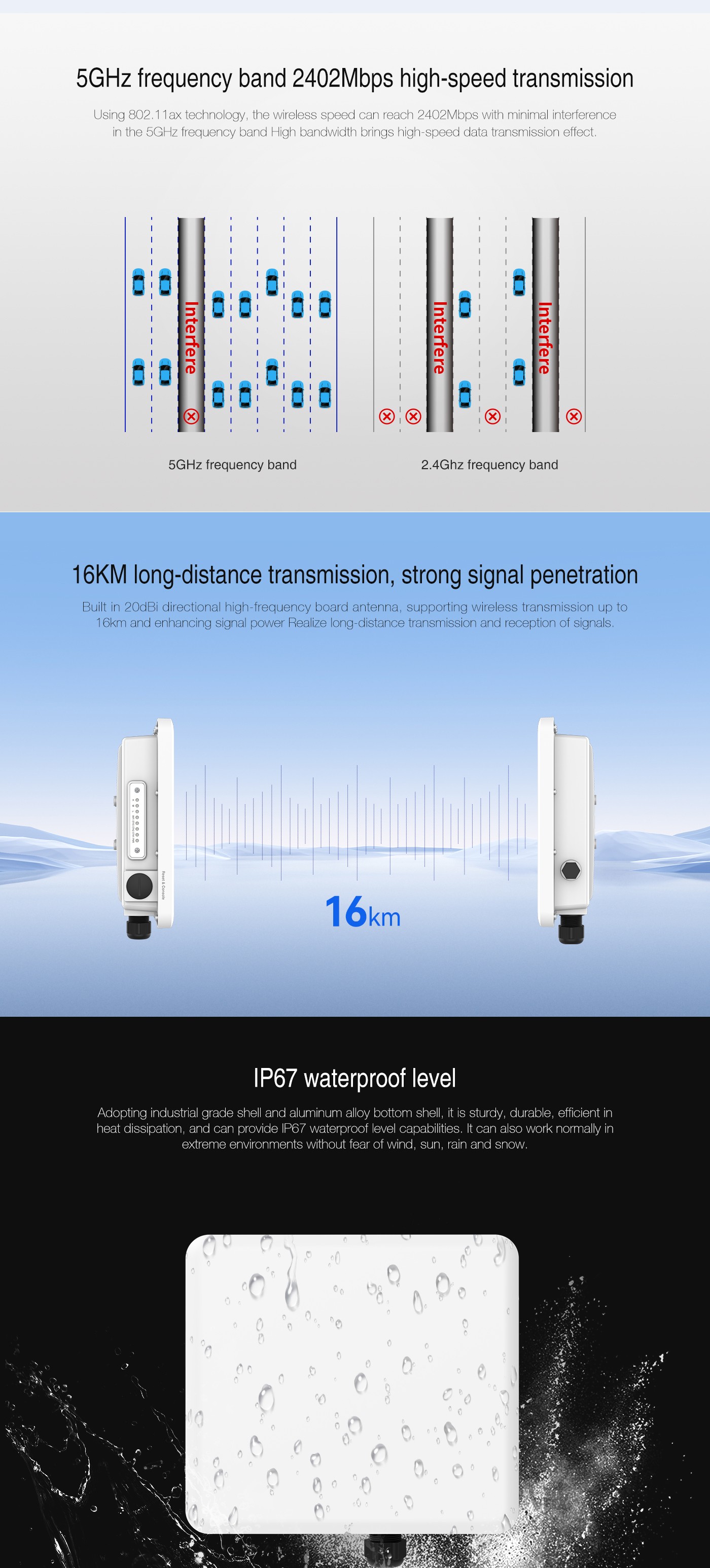

Antenna	Internal 20dBi directional panel antenna
5G TX Power	802.11a	54M	22±2dBm	6M	24±2dBm
	802.11n HT20	MCS7	21±2dBm	MCS0	24±2dBm
	802.11n HT40	MCS7	21±2dBm	MCS0	24±2dBm
	802.11ac VHT20	MCS9	21±2dBm	MCS0	24±2dBm
	802.11ac VHT40	MCS9	20±2dBm	MCS0	24±2dBm
	802.11ac VHT80	MCS9	20±2dBm	MCS0	24±2dBm
	802.11ax HE20	MCS11	20±2dBm	MCS0	24±2dBm
	802.11ax HE40	MCS11	20±2dBm	MCS0	24±2dBm
	802.11ax HE80	MCS11	19±2dBm	MCS0	24±2dBm
	802.11ax HE160	MCS11	18±2dBm	MCS0	23±2dBm
5G Receiving Sensitivity	802.11a	54M	-75dBm	6M	-92dBm
	802.11n HT20	MCS7	-73dBm	MCS0	-92dBm
	802.11n HT40	MCS7	-70dBm	MCS0	-90dBm
	802.11ac VHT20	MCS8	-67dBm	MCS0	-88dBm
	802.11ac VHT40	MCS9	-64dBm	MCS0	-88dBm
	802.11ac VHT80	MCS9	-60dBm	MCS0	-88dBm
	802.11ax HE20	MCS11	-62dBm	MCS0	-90dBm
	802.11ax HE40	MCS11	-60dBm	MCS0	-88dBm
	802.11ax HE80	MCS11	-58dBm	MCS0	-86dBm
	802.11ax HE160	MCS11	-54dBm	MCS0	-84dBm
5G EVM	802.11a:≤-25 dB ；802.11n: ≤-28 dB ；802.11ac:≤-32 dB；802.11ax:≤-35 dB
ppm	±20ppm

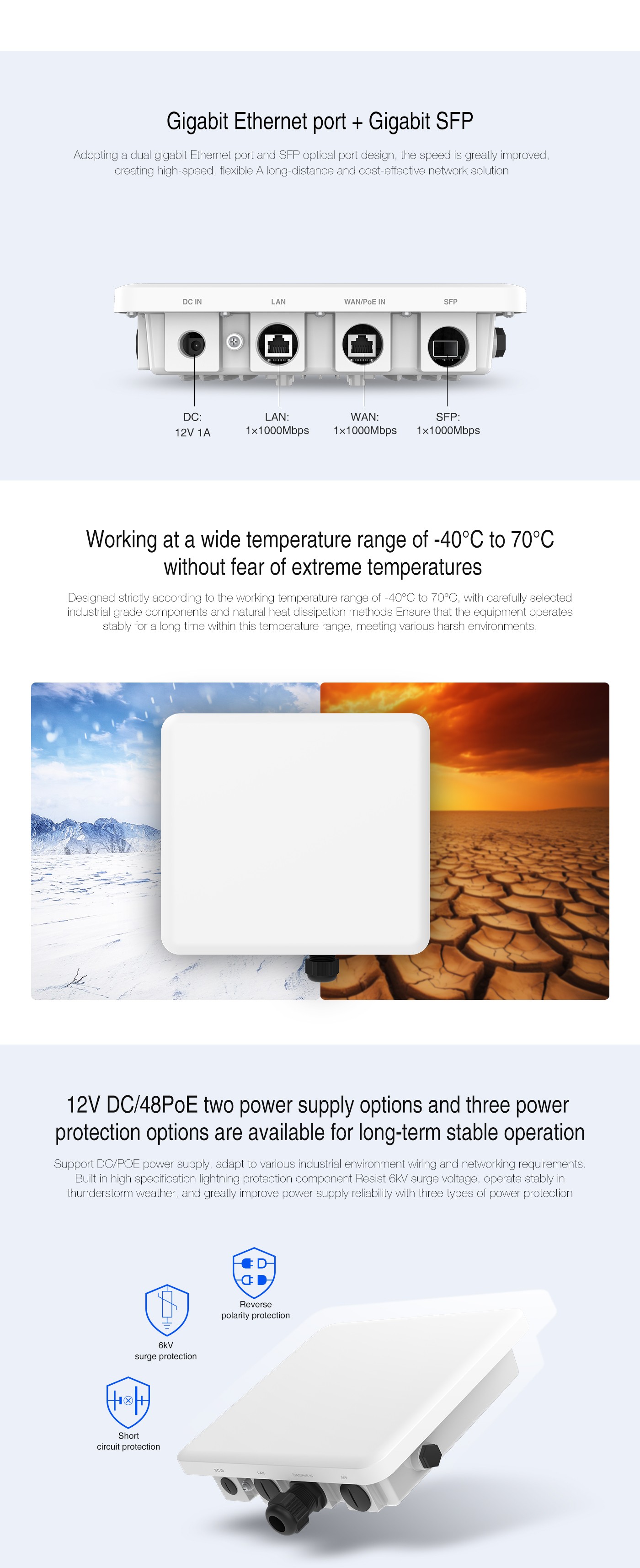

WAN	1*10/100/1000M WAN, support 48V POE
LAN	1*10/100/1000M LAN
SFP	1*gigabit SFP port
Console	1*console port
Power	PoE 802.3at, DC 12V 1.5A
Max Power Consumption	<18W
Reset	Press 6-10 seconds for factory resetting.
Indicators	SYS, WAN, LAN, Signal*5
Dimension	218mm243mm64mm
Weight	1.56KG
Temperature	Working: -40°C to 70°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)
IP Grade	IP65
ESD	Air:±15K, Touch:±8K
Electrical Surge	Common Mode: 4K, Differential Mode: 2K
