Specification parameters |

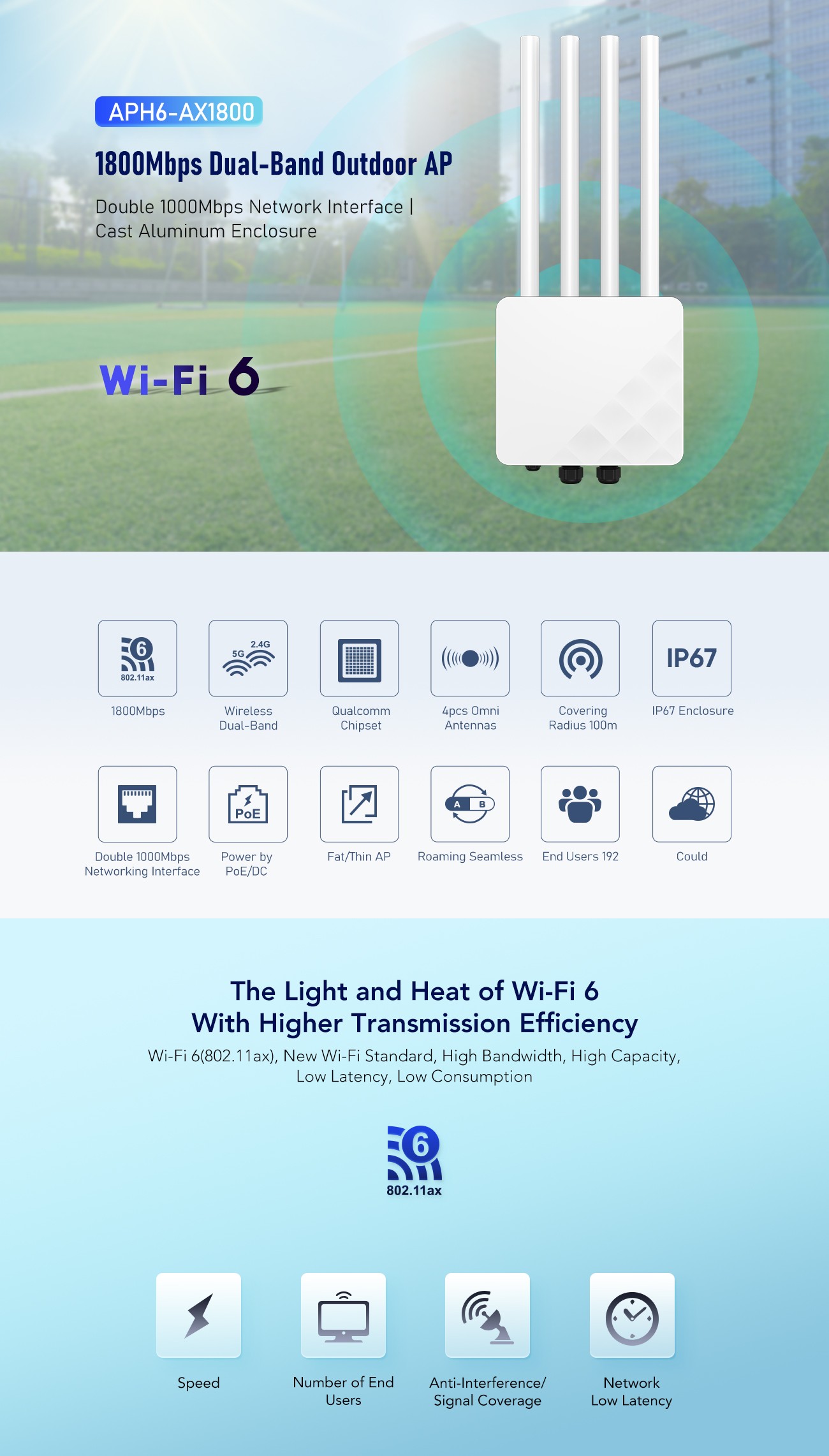

product model | APH6-AX1800 |
Flash | SPI NOR 8MB ； Nand 1G |
DDR2 | External: 512MB * 1 |
2.4G working frequency band | 2.4GHz – 2.484GHz |
2.4G WIFI transmission protocol | 802.11b / g / n /ax |
5G working frequency band | 5.150GHz～5.850GHz |
5G WIFI transmission protocol | 802.11a/ n / ac /ax |

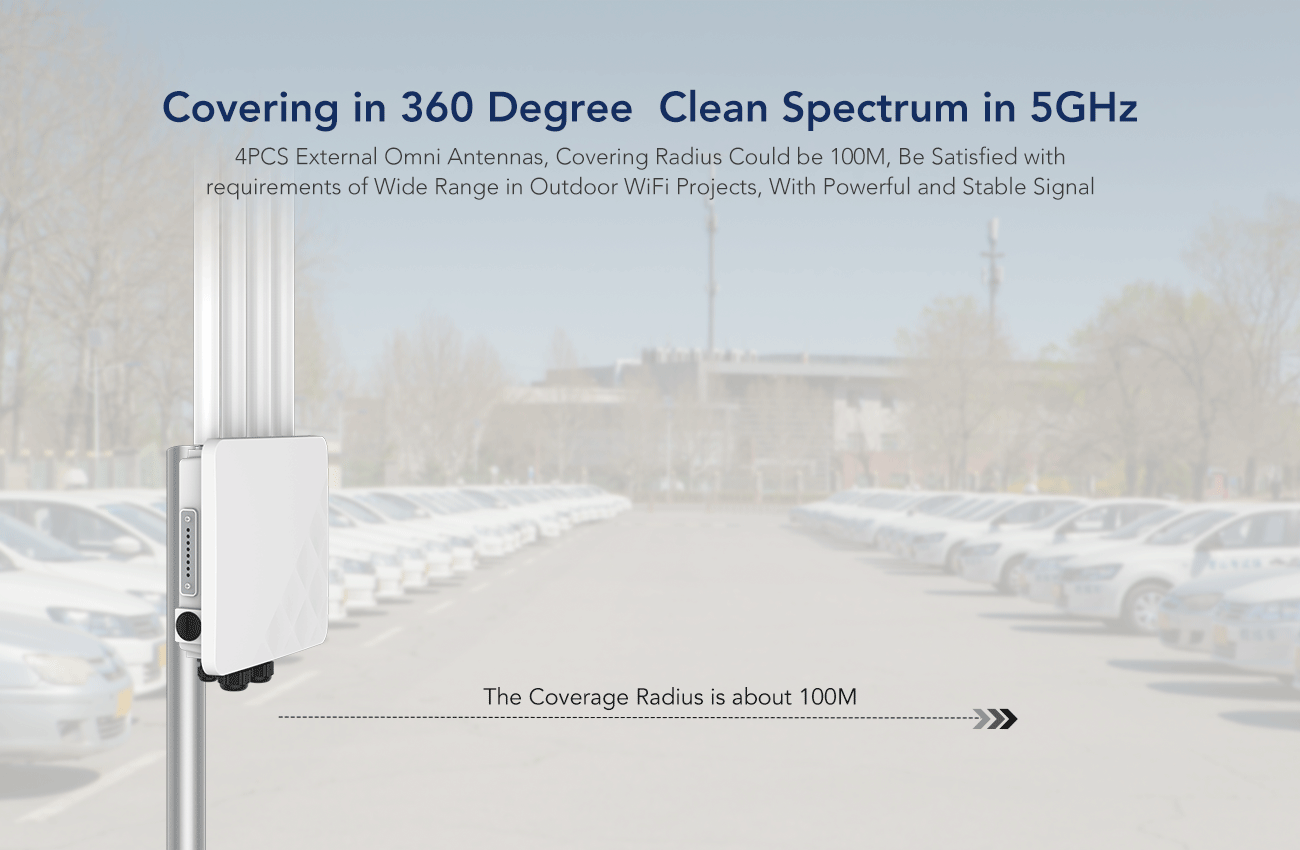

Antenna: 2.4G | 22.4G omni-directional antennas, with each gain: 6 dBi |
Antenna 5G | 25G antennas, each gain: 6 dBi |

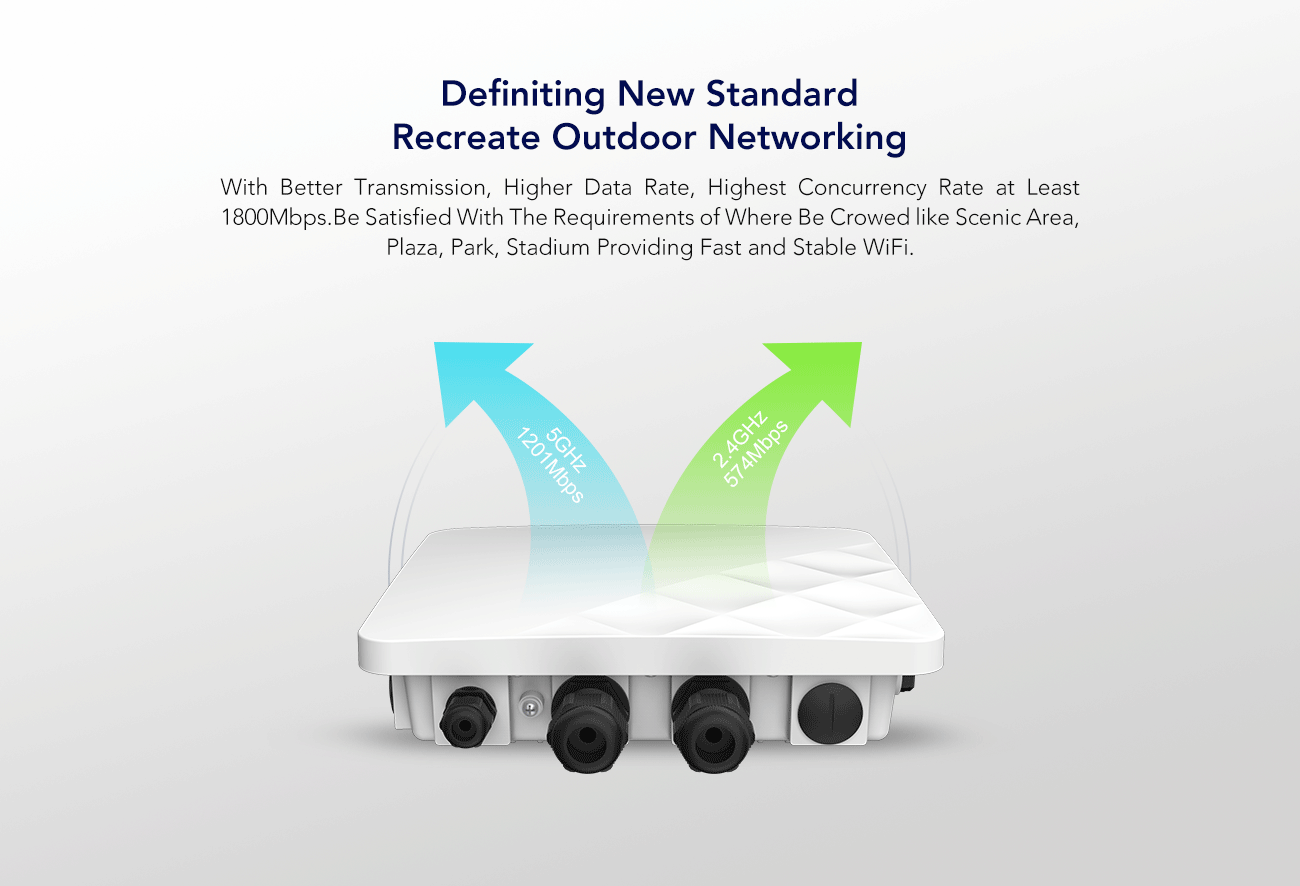

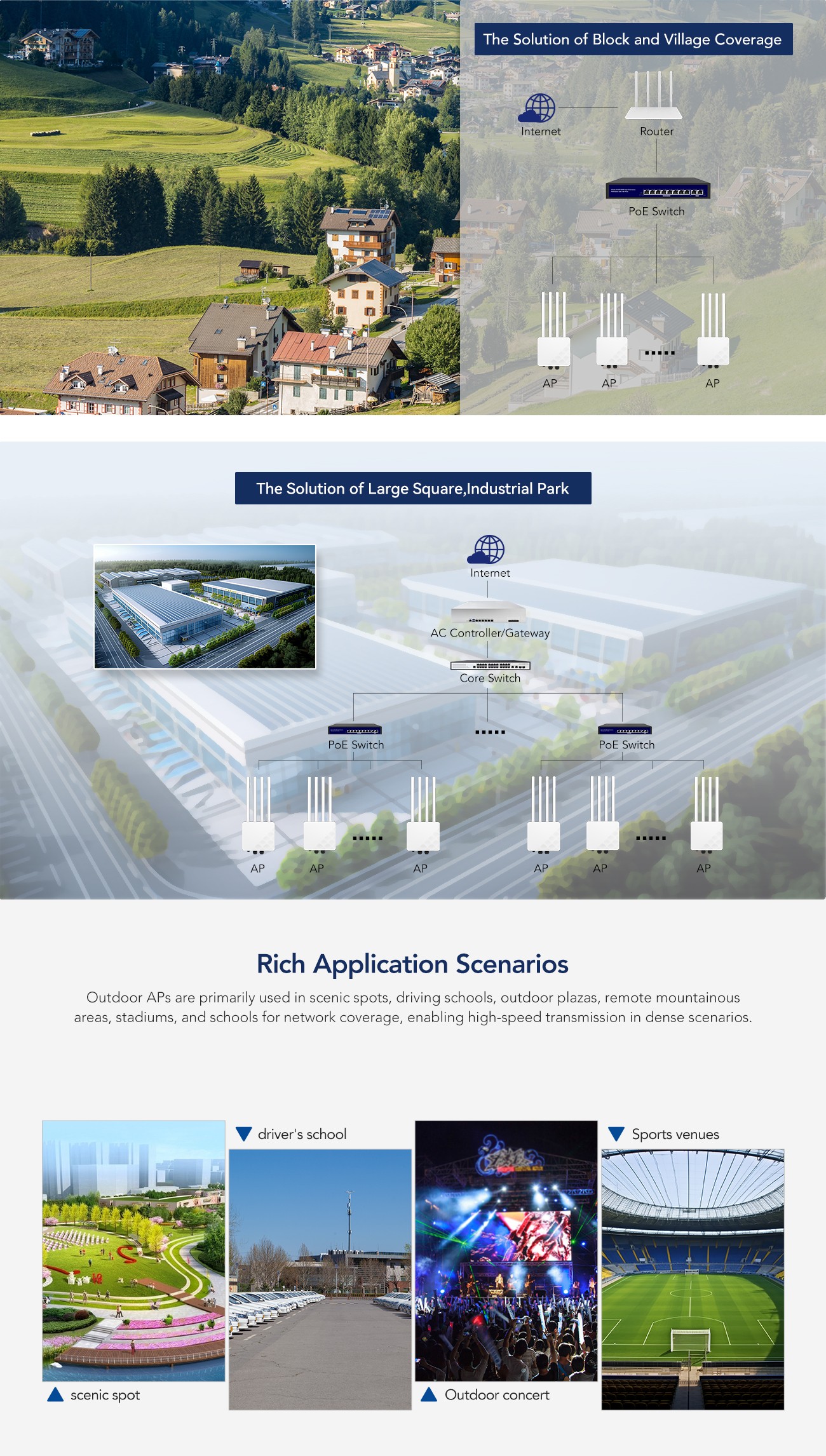

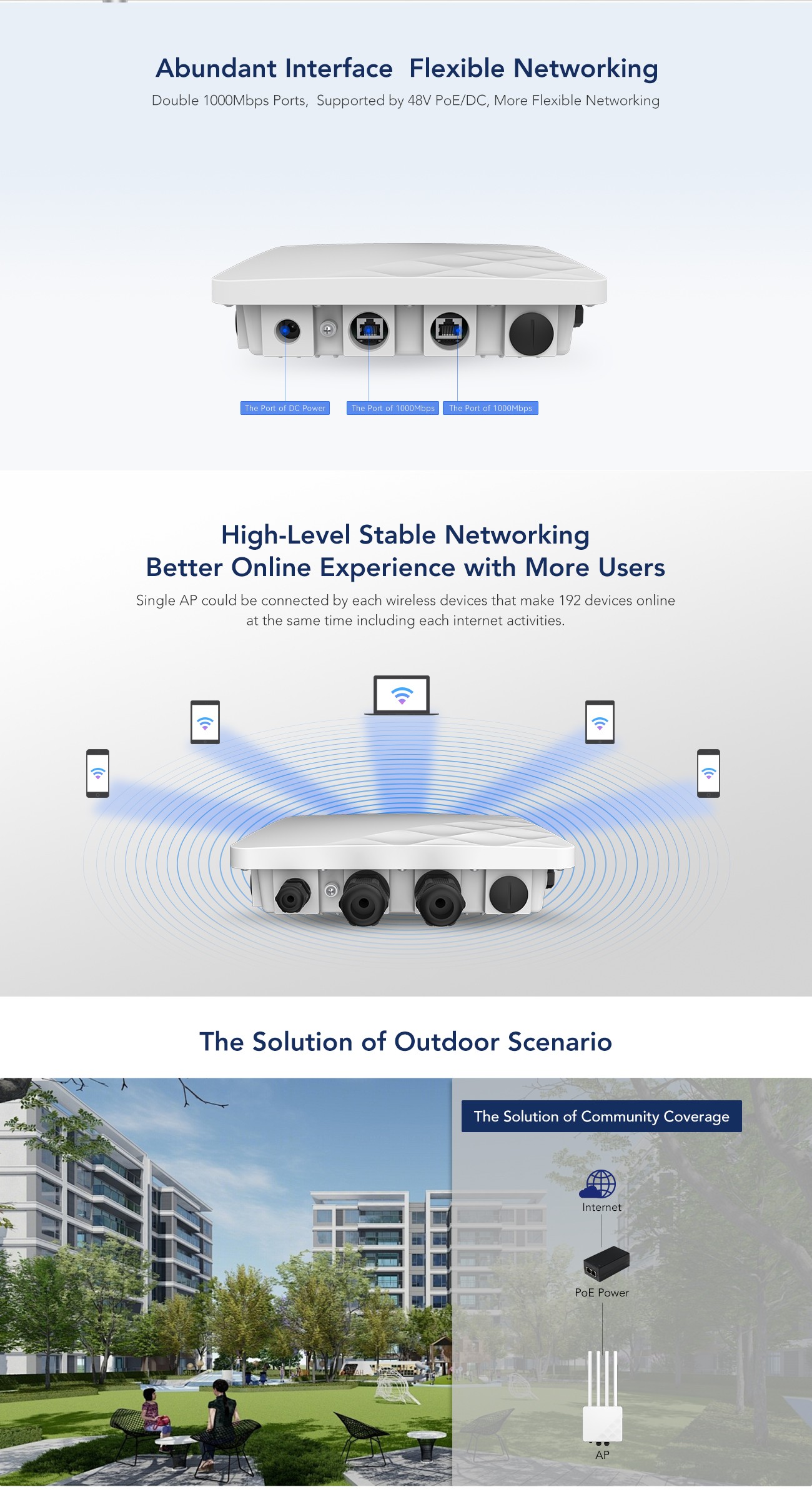

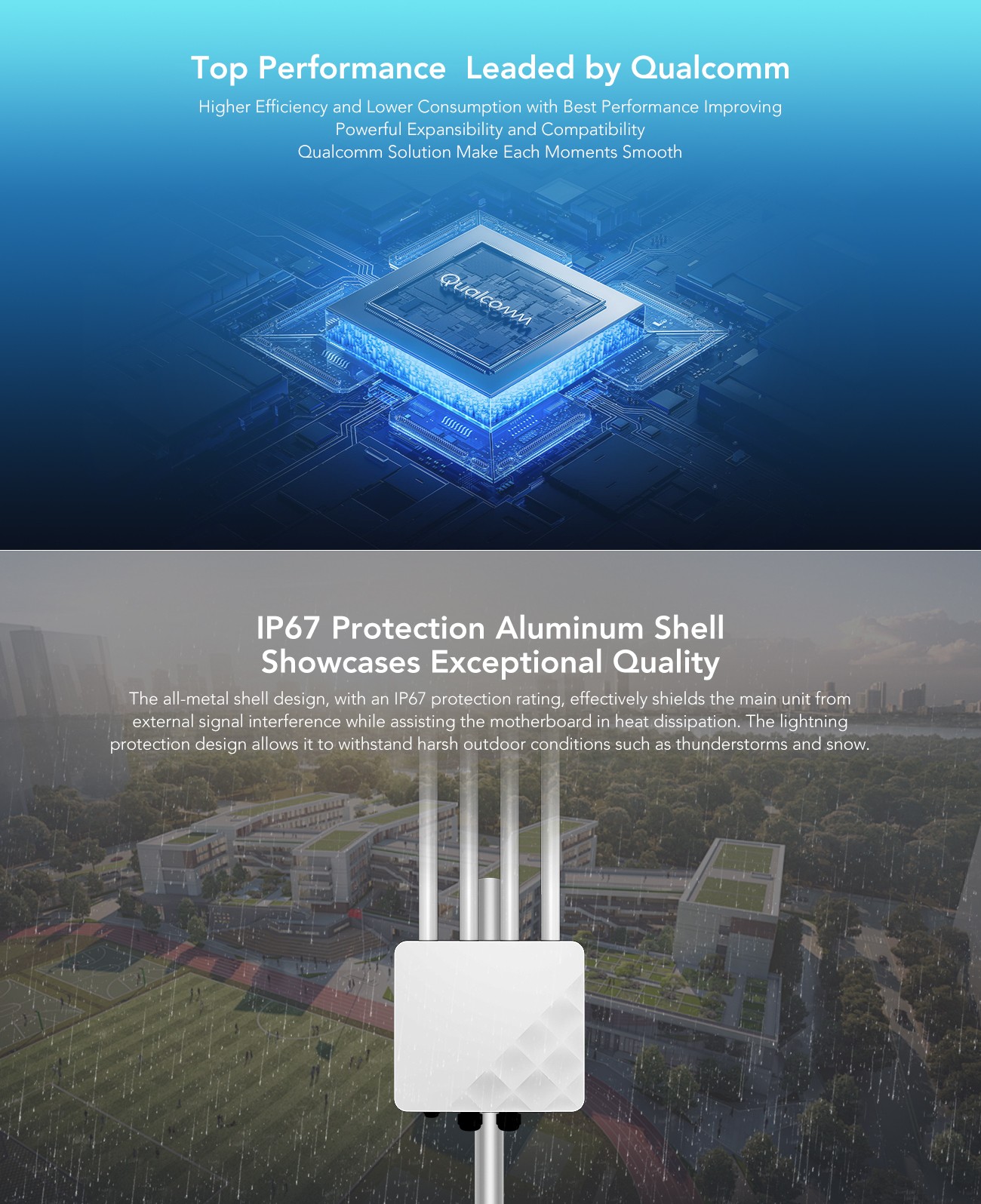

top speed | 2.4G, maximum access rate of 574Mbps, and 5G, maximum access rate of 1201Mbps |
Maximum wireless access support | 192 |
And 2.4G wireless power | 802.11b | 11M | 24±2dBm | 1M | 25±2dBm |
802.11g | 54M | 21±2dBm | 6M | 24±2dBm |
802.11n HT20 | MCS7 | 21±2dBm | MCS0 | 24±2dBm |
802.11n HT40 | MCS7 | 21±2dBm | MCS0 | 24±2dBm |
802.11ax HE20 | MCS11 | 19±2dBm | MCS0 | 24±2dBm |
802.11ax HE40 | MCS11 | 19±2dBm | MCS0 | 24±2dBm |
5G wireless power | 802.11a | 54M | 20±2dBm | 6M | 23±2dBm |
802.11n HT20 | MCS7 | 20±2dBm | MCS0 | 23±2dBm |
802.11n HT40 | MCS7 | 20±2dBm | MCS0 | 23±2dBm |
802.11ac VHT20 | MCS7 | 19±2dBm | MCS0 | 22±2dBm |
802.11ac VHT40 | MCS7 | 18±2dBm | MCS0 | 22±2dBm |
802.11ac VHT80 | MCS9 | 18±2dBm | MCS0 | 22±2dBm |
802.11ax HE20 | MCS11 | 18±2dBm | MCS0 | 21±2dBm |
802.11ax HE40 | MCS11 | 18±2dBm | MCS0 | 21±2dBm |
802.11ax HE80 | MCS11 | 18±2dBm | MCS0 | 21±2dBm |
2.4G reception sensitivity | 802.11b | 11M | -85dBm | 1M | -92dBm |
802.11g | 54M | -72dBm | 6M | -90dBm |
802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm |
802.11ax HE20 | MCS11 | -60dBm | MCS0 | -85dBm |
802.11ax HE40 | MCS11 | -56dBm | MCS0 | -85dBm |
The 5G reception sensitivity | 802.11a | 54M | -72dBm | 6M | -92dBm |
802.11n HT20 | MCS7 | -70dBm | MCS0 | -90dBm |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -88dBm |
802.11ac VHT20 | MCS7 | -68 dBm | MCS0 | -90dBm |
802.11ac VHT40 | MCS7 | -64 dBm | MCS0 | -88dBm |
802.11ac VHT80 | MCS9 | -58dBm | MCS0 | -85dBm |
802.11ax HE20 | MCS11 | -62dBm | MCS0 | -88dBm |
802.11ax HE40 | MCS11 | -58dBm | MCS0 | -86dBm |
802.11ax HE80 | MCS11 | -55dBm | MCS0 | -84dBm |
2.4G EVM | 802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB ; 802.11ax: ≤-35 dB |
5G EVM | 802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB |
frequency deviation (ppm) | ±20ppm |
joggle (WAN) | 110 / 100 / 1000Mbps adaptive WAN port, supporting PoE 48V input; |
joggle (LAN) | 110 / 100 / 1000Mbps adaptive LAN port |
External buttons | Set key (press 6-10 seconds to restore factory default configuration) |
Status indicator light | 5G Hz WiFi lamp: screen printing 5G, green single lamp: 5GHz open often on, off off, flashing when there is data sending and receiving; 2.4G WiFi Light: screen printing 2.4G, green single light: 2.4GHz open often on, off off, flashing when there is data sending and receiving; WAN port lamp: screen printing ETH 2, green single light: UP always on, Down off, there is data shining; LAN port lamp: screen printing ETH 1, green single light: UP always on, Down off, there is data shining; System state light: screen printing SYS, green single light: system state start, always on; abnormal, off; Power light: screen printing PWR, green single light: immediately after power on, green light is always on; |
Supply electricity | PoE802.3 at，DC2.0 12V/2 A |
Maximum power dissipation | < 16 W |
Product size | 243.2 mm × 218.3 mm × 64.1 mm |
weight | TVD |
Work environment | Normal operating temperature: -20°C to 55°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation) |
levels of protection | IP67 |
ESD | Air discharge + / -8K, contact discharge + / -6 K |
surge | Common mode 2K, difference mode 1K |
