product model

FAP803

CPU

MT7628DAN

Flash

SPI NOR 8MB

DDR3L

64M B

The 2.4G antenna

Built-in antenna 2 PCS, antenna gain: 2 dBi

2.4G working frequency band

2.4GHz ~ 2.484GHz

2.4G WIFI transmission protocol

802.11 b / g / n

top speed

2.4G, providing up to 300Mbps access rate

Maximum wireless access support

32

And 2.4G wireless power

802.11b

11M

17±2dBm

1M

19±2dBm

802.11g

54M

16±2dBm

6M

18±2dBm

802.11n HT20

MCS7

15±2dBm

MCS0

17±2dBm

802.11n HT40

MCS7

14±2dBm

MCS0

16±2dBm

2.4G reception sensitivity

802.11b

11M

-82dBm

1M

-94dBm

802.11g

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

2.4G EVM

802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；

frequency deviation (ppm)

±20ppm

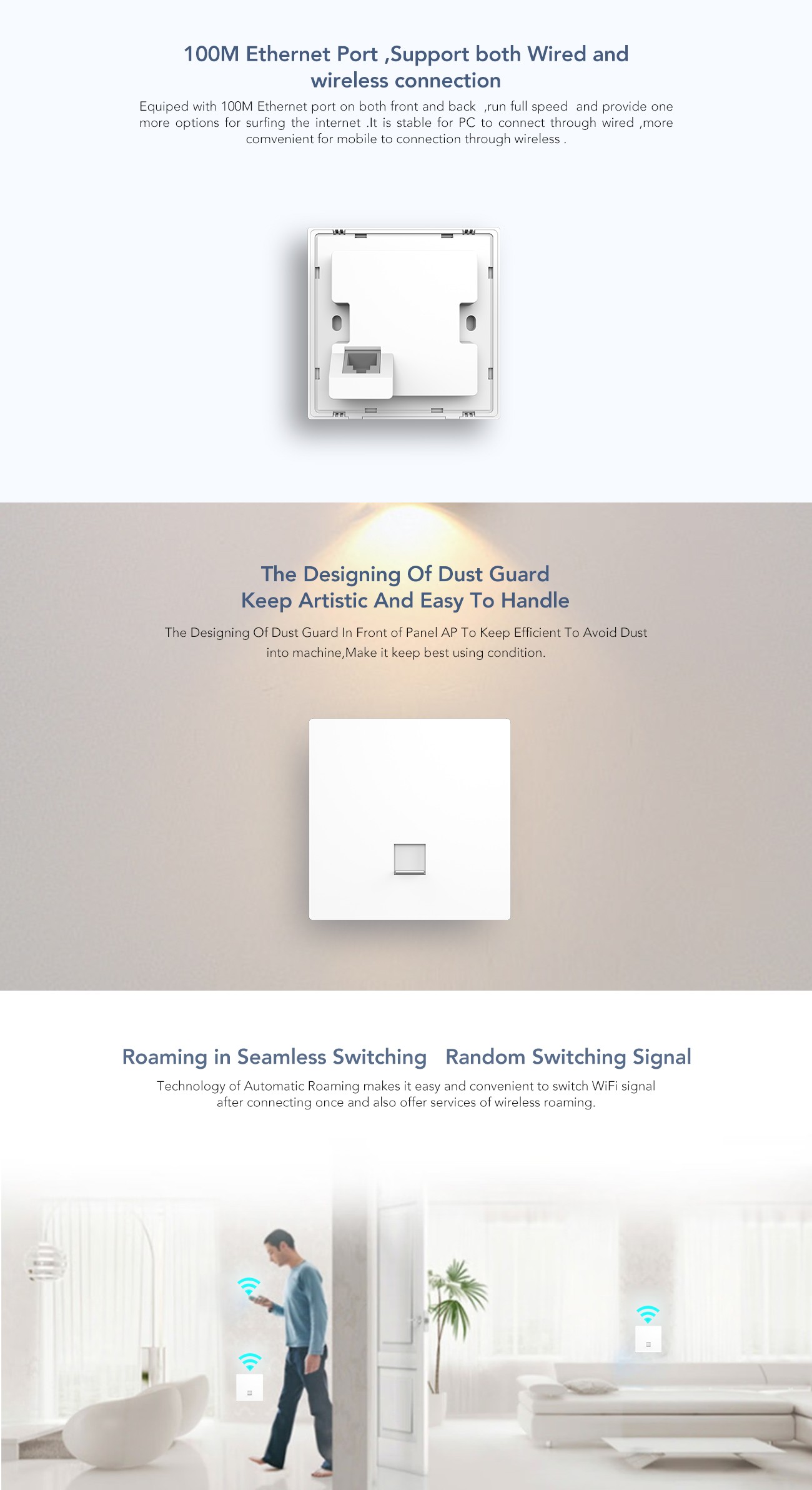

joggle (WAN)

110 / 100Mbps adaptive WAN port, supporting PoE 48V power supply;

joggle (LAN)

110 / 100M bps adaptive LAN port

External buttons

Set key (press 6-10 seconds to restore factory default configuration)

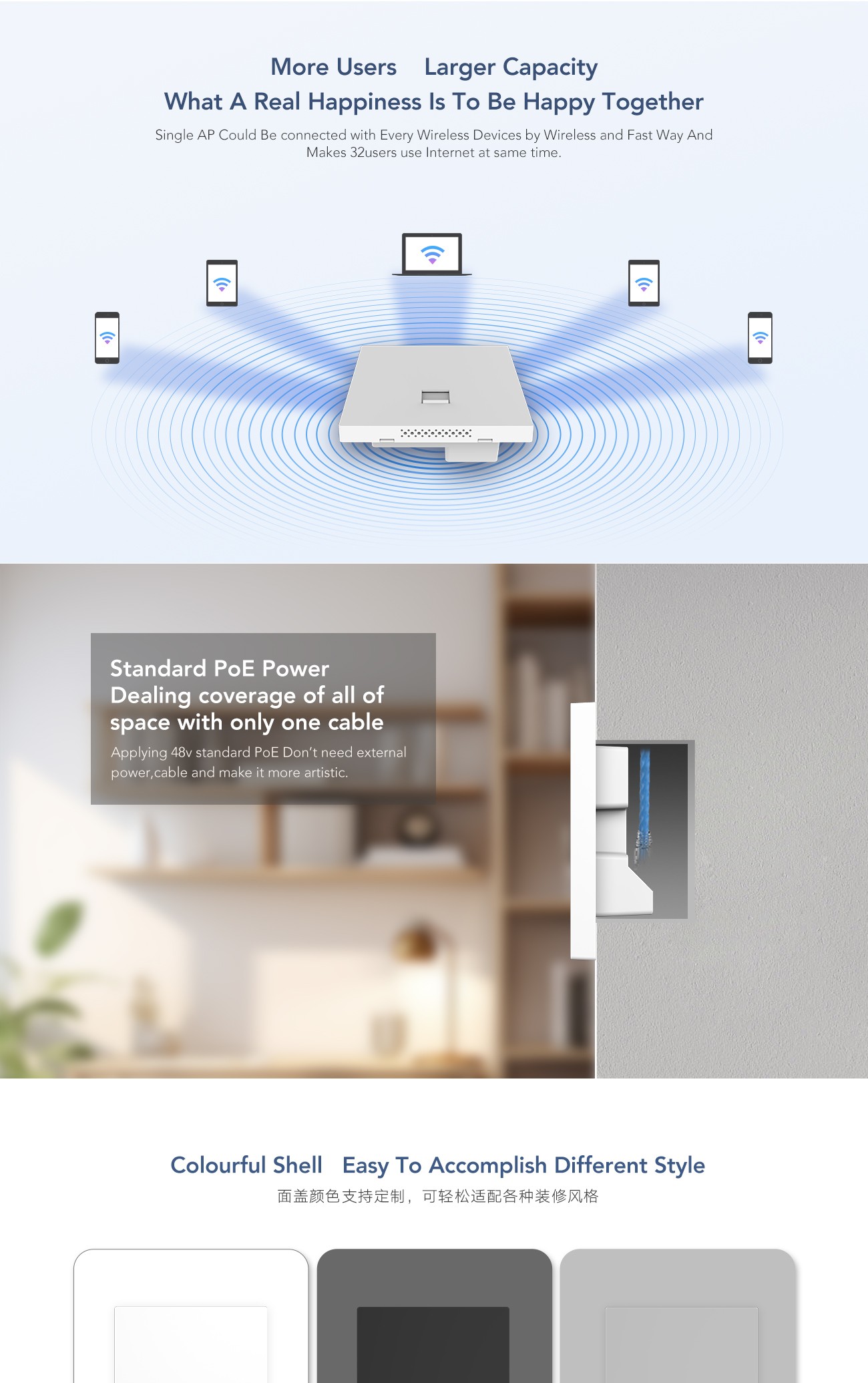

supply electricity

PoE  802.3a f

maximum power dissipation

< 8W

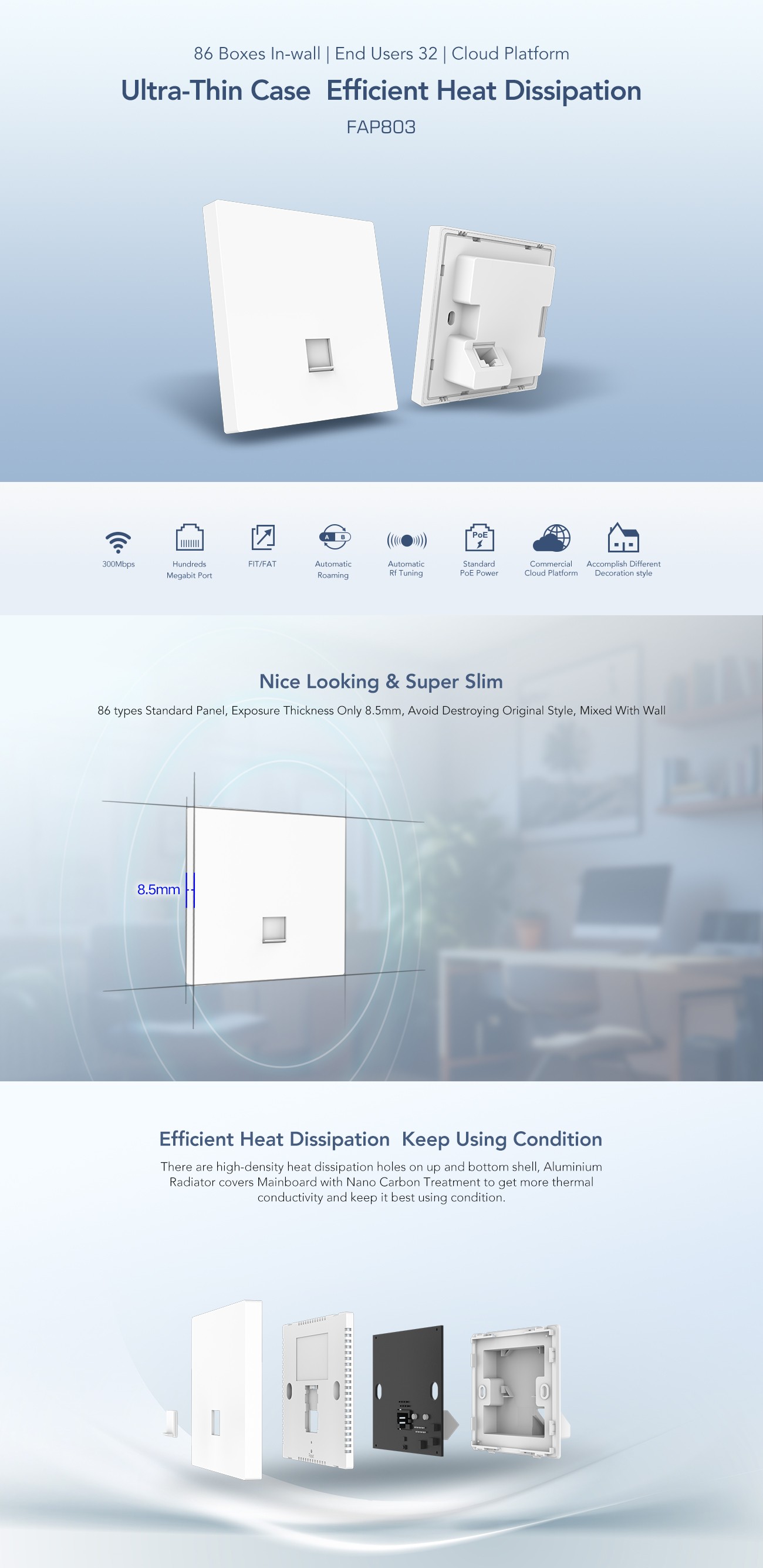

product size

86mm*86mm*29.5mm (8mm high outside the wall).5

weight

0.078k g

work environment

Normal operating temperature: -10°C to 40°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation)

ESD test

Air discharge: ± 8KV, contact discharge: ± 6KV

surge

Common mode 1kV and difference mode 0.5kV
